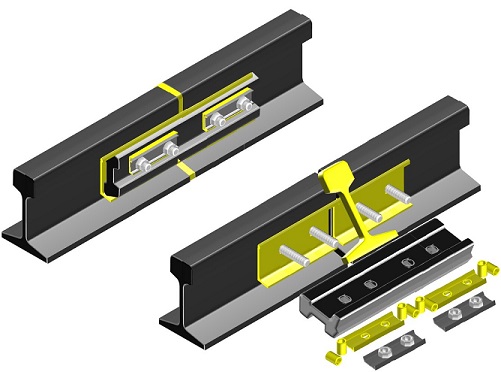

Block Joints for 52 kg and 60 kg rails are specific types of rail joints designed to connect and secure sections of railway track that are made of these respective weights. The numbers indicate the weight of the rail per meter (in kg), which is essential for determining the appropriate joint design and materials needed to ensure the safety and stability of the track.
Key Features of 52 kg and 60 kg Block Joints:
- Design:
- Material: Block joints for both 52 kg and 60 kg rails are typically made from high-strength steel, which ensures durability and resistance to wear and deformation under heavy loads.
- Joint Bars: The joint bars (or fish plates) used for these joints are designed to fit the specific profile of the 52 kg and 60 kg rails, providing a secure connection.
- Fastening: The joints are secured using bolts or welds, ensuring that the rail ends are tightly fastened to maintain alignment and stability.
- Applications:
- Track Connections: These block joints are used at various points along the railway track, particularly where different sections of rails meet, such as at switches, crossings, or rail extensions.
- Heavy-Duty Rail Systems: The 60 kg rail joints are often used in heavy-duty rail systems, such as freight corridors, where increased strength and stability are necessary.
- Installation:
- Alignment: Proper alignment of the rail ends is crucial for the effective functioning of the block joint. The joint bars should be installed such that they align perfectly with the rail profile to ensure smooth transitions for trains.
- Torque Specifications: When fastening the joint, it’s important to adhere to the manufacturer’s torque specifications to avoid over-tightening, which can damage the rail.
- Maintenance:
- Regular inspections of block joints for both 52 kg and 60 kg rails are essential to ensure their integrity. This includes checking for signs of wear, loose bolts, or misalignment.
- Maintenance may involve tightening bolts, replacing worn joint bars, or re-aligning the rail sections as necessary.
